Pair CAMx with TropOMI NO2

This example pairs CAMx 3D data with TropOMI NO2 columns using the CMAQ Satellite Processors (cmaqsatproc). This includes (1) downloading TropOMI data from NASA’s Distribution and Active Archive Centers (DAAC), (2) regridding TropOMI to the CAMx grid, (3) subseting CAMx to just overpass times, (4) filtering CAMx to valid retrieval pixels/layers, and (5) applying the CAMx a priori shape to the TropOMI retrieval.

Reminder: You must have already activated your python environment.

Configuration

# General settings
satname = 'TropOMINO2'  # or TropOMIHCHO, VIIRS_AERDB, ...
date = '2019-06-10'  # Doing just one day... as a surrogate.
GDNAM = '36CAMX1'  # Using Lambert Conic Conformal 36-km grid
gdpath = '../../camx/GRIDDESC'  # Definition of a grid
figpath = f'outputs/CAMx_{satname}_{GDNAM}_{date}.png'

Imports and Folders

import xarray as xr
import cmaqsatproc as csp
import matplotlib.pyplot as plt
import pycno
import os

os.makedirs('outputs', exist_ok=True)


# Define input paths
sdate = '2016' + date.replace('-', '')[4:]  # pair 2019 satellite with 2016 model...
cpath = f'../../camx/outputs/CAMx.v7.32.36.12.{sdate}.3D.avrg.grd01.nc'
# If you used camx.tar.gz for inputs, update the met folder to metss
mpath = f'../../camx/met/camx.3d.36km.{sdate}.nc'

# Define outputpaths
l3spath = f'outputs/{satname}_{date}_{GDNAM}.nc'
l3mpath = f'outputs/CAMx_{satname}_{date}_{GDNAM}.nc'

Satellite to CMAQ/CAMx Grid

# Get a CMAQ/CAMx grid definition
cg = csp.open_griddesc(GDNAM, gdpath=gdpath)

# Get the Satellite Reader object
satreader = csp.reader_dict[satname]

# Download input files
dests = satreader.cmr_download(
    temporal=f'{date}T17:00:00Z/{date}T23:59:59Z',
    bbox=cg.csp.bbox(), verbose=1
)

# Use CMAQ grid definition and date to drive cmr query
l3 = satreader.paths_to_level3(
    dests, grid=cg.csp.geodf,
    bbox=cg.csp.bbox(), verbose=9
)
l3.to_netcdf(l3spath)

{'concept_id': 'C2089270961-GES_DISC', 'page_size': '1000', 'pretty': 'false', 'temporal': '2019-06-10T17:00:00Z/2019-06-10T23:59:59Z', 'bounding_box': '-132.237011,18.856103,-54.624370,52.880721'}
4 links
data.gesdisc.earthdata.nasa.gov/data/S5P_TROPOMI_Level2/S5P_L2__NO2____HiR.2/2019/161/S5P_RPRO_L2__NO2____20190610T170352_20190610T184522_08588_03_020400_20221105T173209.nc
defaults ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'averaging_kernel', 'tm5_tropopause_layer_index', 'surface_pressure']
griddims ['ROW', 'COL']
dimsets {('time', 'scanline', 'ground_pixel'): ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'tm5_tropopause_layer_index', 'surface_pressure'], ('time', 'scanline', 'ground_pixel', 'layer'): ['averaging_kernel']}
Making geometry
Geometry has 136075 rows (2.2s)
Making overlay
Overlay has 151928 rows (1.9s)
Adding weights
Working on ('time', 'scanline', 'ground_pixel')
 - Making dataframe
   - Dataframe has 136075 rows
 - Adding intx geometry
   - Weighted inputs has 151928 rows (0.1s)
 - Weighting
   - Weighted outputs has 4587 rows (0.0s)
 - Adding attributes
Working on ('time', 'scanline', 'ground_pixel', 'layer')
 - Making dataframe
   - Dataframe has 4626550 rows
 - Adding intx geometry
   - Unstacking ['layer']
   - Weighted inputs has 151928 rows (1.3s)
 - Weighting
/work/ROMO/users/bhenders/SESARMTraining/py312/lib64/python3.12/site-packages/cmaqsatproc/readers/core.py:461: FutureWarning: The previous implementation of stack is deprecated and will be removed in a future version of pandas. See the What's New notes for pandas 2.1.0 for details. Specify future_stack=True to adopt the new implementation and silence this warning.
  ngdf = ngdf.stack(notgeodims)
   - Weighted outputs has 155958 rows (0.1s)
 - Adding attributes
data.gesdisc.earthdata.nasa.gov/data/S5P_TROPOMI_Level2/S5P_L2__NO2____HiR.2/2019/161/S5P_RPRO_L2__NO2____20190610T184522_20190610T202652_08589_03_020400_20221105T173313.nc
defaults ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'averaging_kernel', 'tm5_tropopause_layer_index', 'surface_pressure']
griddims ['ROW', 'COL']
dimsets {('time', 'scanline', 'ground_pixel'): ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'tm5_tropopause_layer_index', 'surface_pressure'], ('time', 'scanline', 'ground_pixel', 'layer'): ['averaging_kernel']}
Making geometry
Geometry has 155871 rows (2.8s)
Making overlay
Overlay has 191171 rows (2.2s)
Adding weights
Working on ('time', 'scanline', 'ground_pixel')
 - Making dataframe
   - Dataframe has 155871 rows
 - Adding intx geometry
   - Weighted inputs has 191171 rows (0.1s)
 - Weighting
   - Weighted outputs has 5964 rows (0.0s)
 - Adding attributes
Working on ('time', 'scanline', 'ground_pixel', 'layer')
 - Making dataframe
   - Dataframe has 5299614 rows
 - Adding intx geometry
   - Unstacking ['layer']
   - Weighted inputs has 191171 rows (1.4s)
 - Weighting
/work/ROMO/users/bhenders/SESARMTraining/py312/lib64/python3.12/site-packages/cmaqsatproc/readers/core.py:461: FutureWarning: The previous implementation of stack is deprecated and will be removed in a future version of pandas. See the What's New notes for pandas 2.1.0 for details. Specify future_stack=True to adopt the new implementation and silence this warning.
  ngdf = ngdf.stack(notgeodims)
   - Weighted outputs has 202776 rows (0.1s)
 - Adding attributes
data.gesdisc.earthdata.nasa.gov/data/S5P_TROPOMI_Level2/S5P_L2__NO2____HiR.2/2019/161/S5P_RPRO_L2__NO2____20190610T202652_20190610T220822_08590_03_020400_20221105T173358.nc
defaults ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'averaging_kernel', 'tm5_tropopause_layer_index', 'surface_pressure']
griddims ['ROW', 'COL']
dimsets {('time', 'scanline', 'ground_pixel'): ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'tm5_tropopause_layer_index', 'surface_pressure'], ('time', 'scanline', 'ground_pixel', 'layer'): ['averaging_kernel']}
Making geometry
Geometry has 112140 rows (1.9s)
Making overlay
Overlay has 124190 rows (1.4s)
Adding weights
Working on ('time', 'scanline', 'ground_pixel')
 - Making dataframe
   - Dataframe has 112140 rows
 - Adding intx geometry
   - Weighted inputs has 124190 rows (0.1s)
 - Weighting
   - Weighted outputs has 3379 rows (0.0s)
 - Adding attributes
Working on ('time', 'scanline', 'ground_pixel', 'layer')
 - Making dataframe
   - Dataframe has 3812760 rows
 - Adding intx geometry
   - Unstacking ['layer']
   - Weighted inputs has 124190 rows (1.0s)
 - Weighting
/work/ROMO/users/bhenders/SESARMTraining/py312/lib64/python3.12/site-packages/cmaqsatproc/readers/core.py:461: FutureWarning: The previous implementation of stack is deprecated and will be removed in a future version of pandas. See the What's New notes for pandas 2.1.0 for details. Specify future_stack=True to adopt the new implementation and silence this warning.
  ngdf = ngdf.stack(notgeodims)
   - Weighted outputs has 114886 rows (0.0s)
 - Adding attributes
data.gesdisc.earthdata.nasa.gov/data/S5P_TROPOMI_Level2/S5P_L2__NO2____HiR.2/2019/161/S5P_RPRO_L2__NO2____20190610T220822_20190610T234951_08591_03_020400_20221105T173846.nc
defaults ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'averaging_kernel', 'tm5_tropopause_layer_index', 'surface_pressure']
griddims ['ROW', 'COL']
dimsets {('time', 'scanline', 'ground_pixel'): ['air_mass_factor_total', 'air_mass_factor_troposphere', 'nitrogendioxide_tropospheric_column', 'nitrogendioxide_total_column', 'tm5_tropopause_layer_index', 'surface_pressure'], ('time', 'scanline', 'ground_pixel', 'layer'): ['averaging_kernel']}
Making geometry
Geometry has 31 rows (0.2s)
Making overlay
Overlay has 0 rows (0.0s)
Adding weights
/work/ROMO/users/bhenders/SESARMTraining/py312/lib64/python3.12/site-packages/cmaqsatproc/readers/core.py:284: UserWarning: All areas are zero, which likely means that geometries were points. Reverting to equal weights.
  warnings.warn(
Working on ('time', 'scanline', 'ground_pixel')
 - Making dataframe
   - Dataframe has 31 rows
 - Adding intx geometry
   - Weighted inputs has 0 rows (0.0s)
 - Weighting
   - Weighted outputs has 0 rows (0.0s)
 - Adding attributes
Working on ('time', 'scanline', 'ground_pixel', 'layer')
 - Making dataframe
   - Dataframe has 1054 rows
 - Adding intx geometry
   - Unstacking ['layer']
   - Weighted inputs has 0 rows (0.0s)
 - Weighting
/work/ROMO/users/bhenders/SESARMTraining/py312/lib64/python3.12/site-packages/cmaqsatproc/readers/core.py:461: FutureWarning: The previous implementation of stack is deprecated and will be removed in a future version of pandas. See the What's New notes for pandas 2.1.0 for details. Specify future_stack=True to adopt the new implementation and silence this warning.
  ngdf = ngdf.stack(notgeodims)
   - Weighted outputs has 0 rows (0.0s)
 - Adding attributes

CMAQ/CAMx to Satellite

# reopen satellite l3 file
l3 = xr.open_dataset(l3spath)

# Open a CMAQ 3D CONC file (NO2) and 3d met file (pressure, z, temperature, humiditiy)
cf = csp.open_ioapi(cpath)
mkeys = ['pressure', 'z', 'temperature', 'humidity']
mf = csp.open_ioapi(mpath)[mkeys].interp(TSTEP=cf.TSTEP)

# Reorganize like CMAQ for cmaqsatproc
qf = mf[mkeys]
qf['PRES'] = qf['pressure'] * 100.
qf['NO2'] = cf['NO2'].dims, cf['NO2'].data, cf['NO2'].attrs

# Create satellite according to CMAQ, and CMAQ according to satellite
overf = satreader.cmaq_process(qf, l3)
overf.to_netcdf(l3mpath)

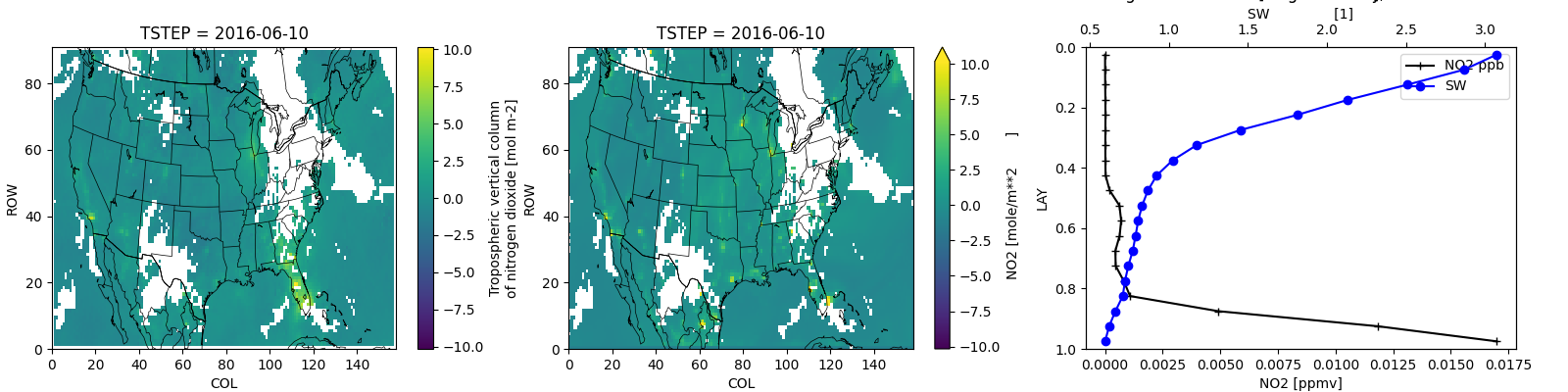

Make a Plot Comparison

mf = xr.open_dataset(l3mpath)
sf = xr.open_dataset(l3spath)

gskw = dict(left=0.033, right=0.967)
fig, axx = plt.subplots(1, 3, figsize=(16, 4), gridspec_kw=gskw)
ax = axx[2]
maxmf = mf.sel(ROW=39.5, COL=16.5)
ppml, = maxmf['NO2'].plot(y='LAY', label='NO2', marker='+', color='k', ax=ax)
swl, = maxmf['NO2_AK_CMAQ'].plot(y='LAY', marker='o', color='b', ax=ax.twiny())
ax.legend([ppml, swl], ['NO2 ppb', 'SW'])
ax.set(ylim=(1, 0), title='NO2 and Sensitivity')
Z = mf.eval('(VCDNO2_TOMI_CMAQ - VCDNO2_TOMI_CMAQ.mean()) / VCDNO2_TOMI_CMAQ.mean()')
qm = Z.plot(ax=axx[0], cmap='viridis')
Z = mf.eval('(VCDNO2_CMAQ - VCDNO2_CMAQ.mean()) / VCDNO2_CMAQ.std()')
Z.plot(ax=axx[1], norm=qm.norm, cmap=qm.cmap)
pycno.cno(mf.crs).drawstates(ax=axx[:2])
fig.savefig(figpath)
